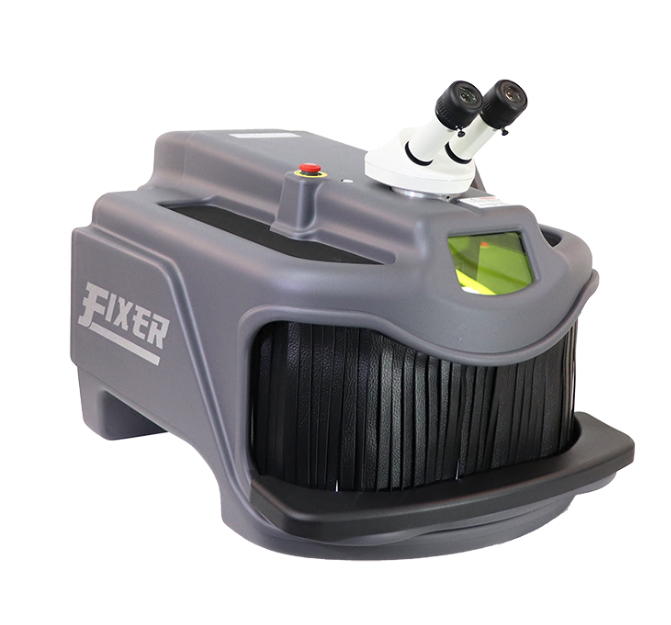

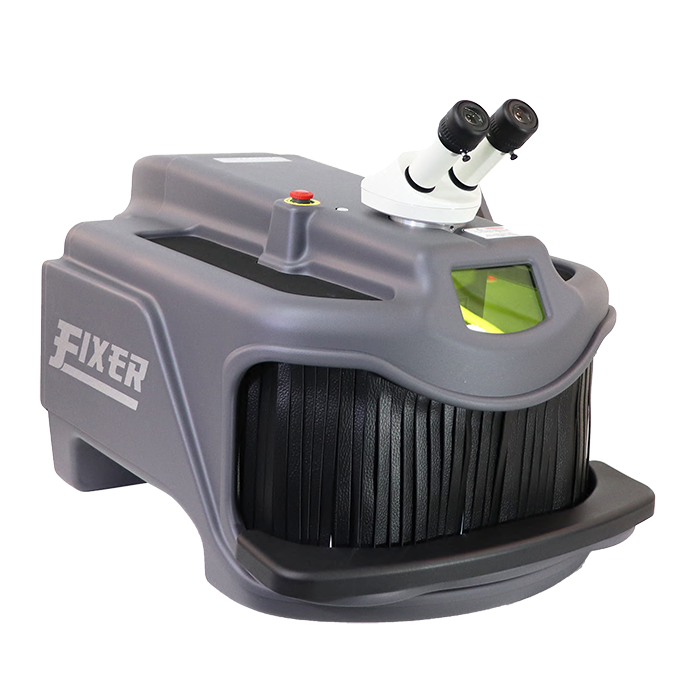

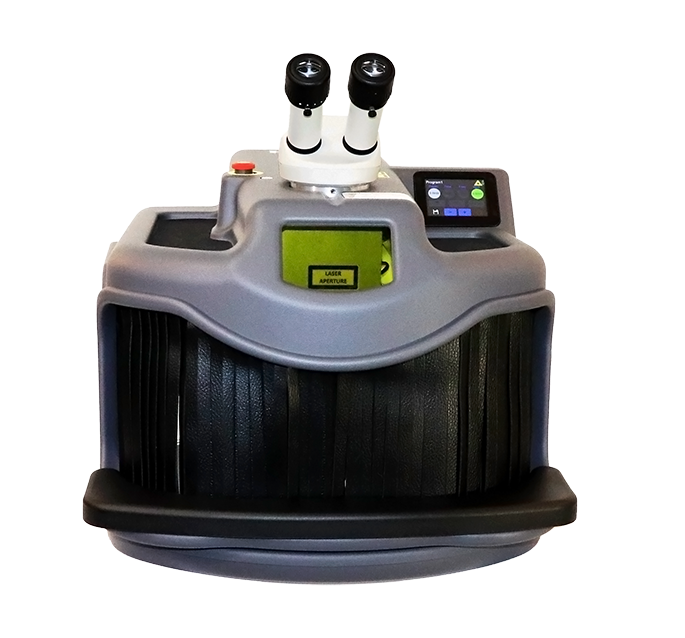

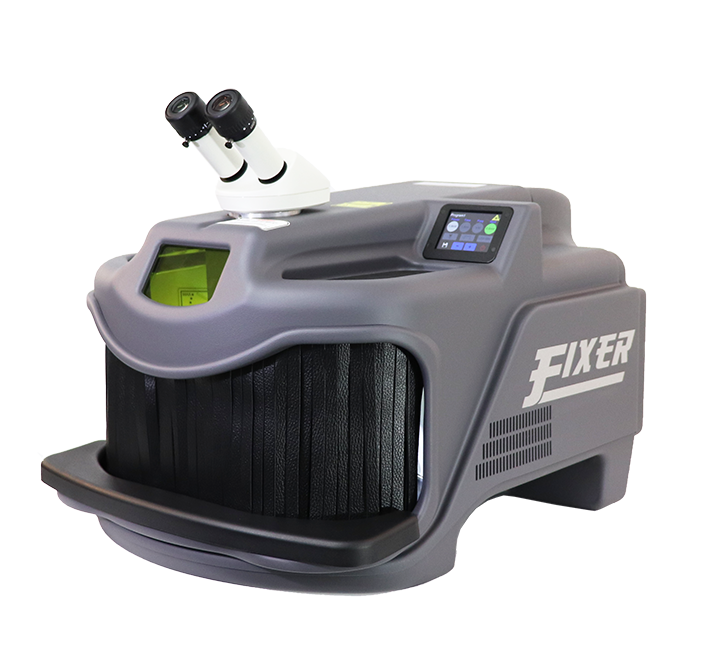

FIXER Laser Welding Machine
-This is the updated version of our highly reputed fixer
-The same size as the previous version, but more powerful, at 160 joules!
-It is usable in even the smallest workshops
-Low cost, yet effective!
| Power | AC115-230V±10％ 1ph 50/60Hz 16A |
|---|---|
| Size | 520(W) × 700(D) × 400(H)mm |
| Weight | 32 kg |
| Peak power | 6.5 kW |
| Mean power | 75 W |
| Fequency of repetition | -20Hz |
| Spot size | 0.3～1.5 mm |
| Cooling | Water-cooling circulation system |
| Hume ventilation | Standard equipment |
| Option | Inert gas and Cooling air are connectable |
