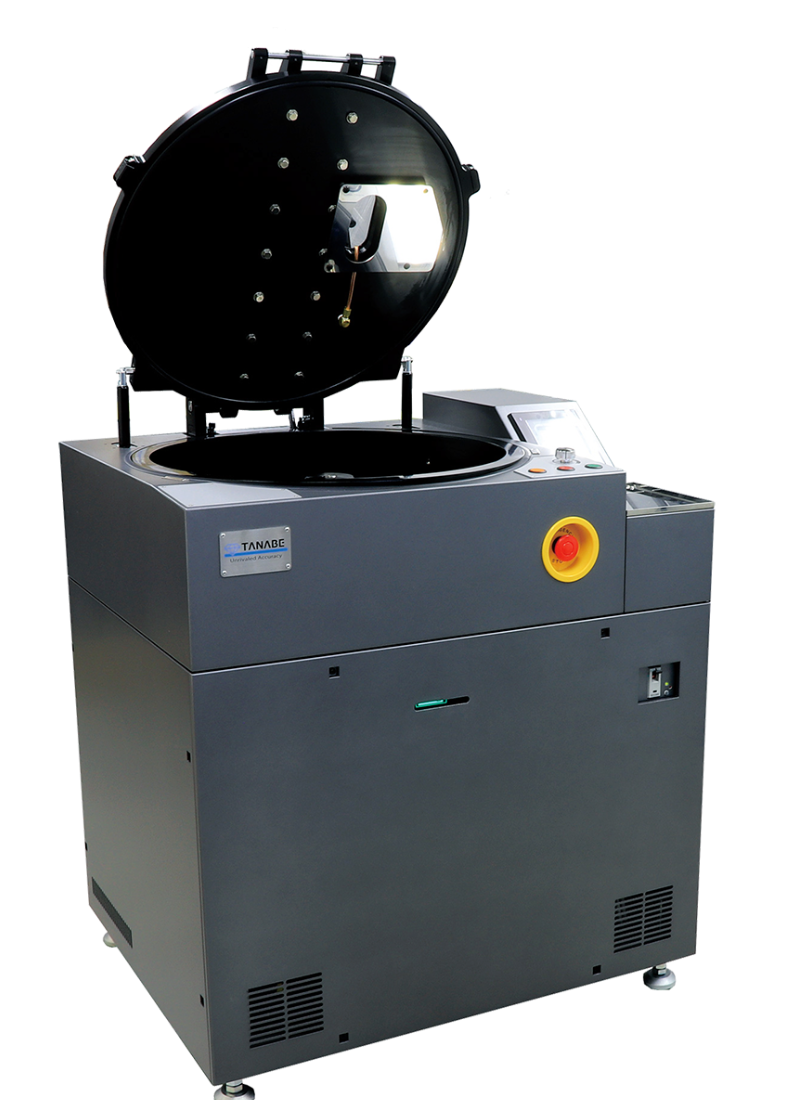

TCP-5251 Vacuum Centrifugal Casting Machine
-Achieve ideal casting with the TCP-5251 Vacuum Centrifugal Casting Machine
-Better filling of the mold through a highly-efficient rotation program and snap-swing arm
-Equipped with inert gas replacement control to prevent pinholes
-Smoke removal function allows for extremely accurate temperature measurements
-Casting is a simple process, but our detailed design allows for the highest quality of casting
| Power | AC200V 3ph 50/60Hz 6.5kVA |
|---|---|
| Size | 700(W) x 700(D) x 930(H) mm |
| Weight | 230kg |
| For use with | Pt |
| Oscillator | 4kW |
| Range of thermometry | 750℃~2000℃ |
| Thermometry | Radiation thermometer |
| Temperature control | PID |
| Max volume | Pt:200g |
| Mold sizes | Φ76.3 x 90(H)mm(MAX) |
| Other | Compressed air 5kg (Constant) Cooling water (2.0L / min) Vacuum pump (300L / min) |

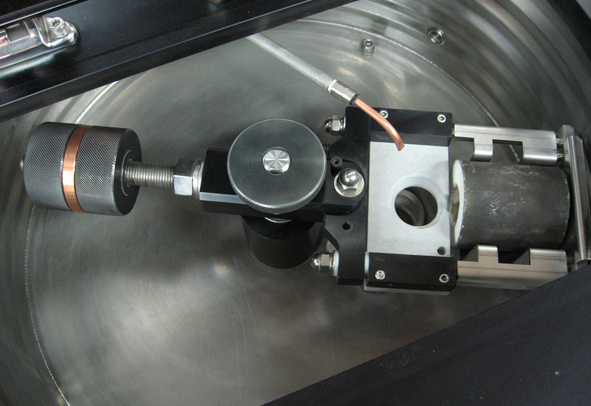

Swing arm

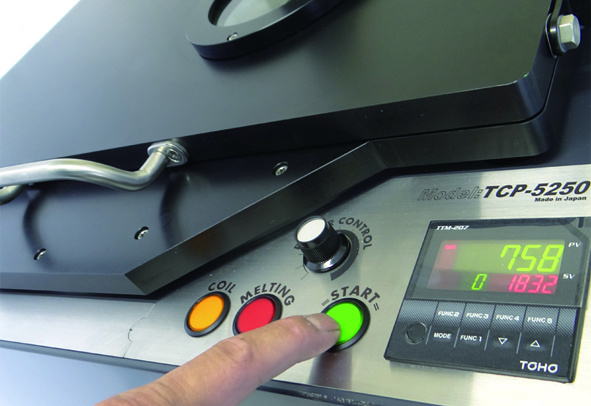

One-touch operation

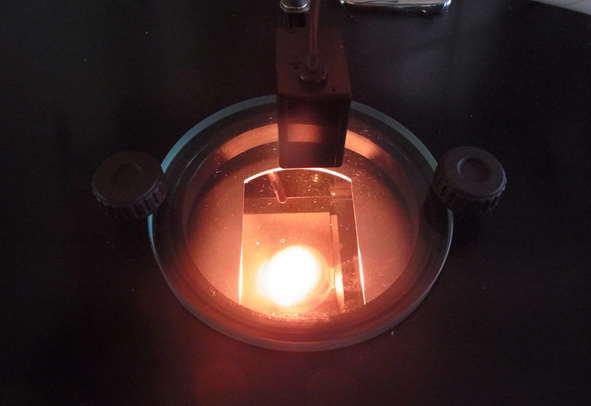

Dissolve

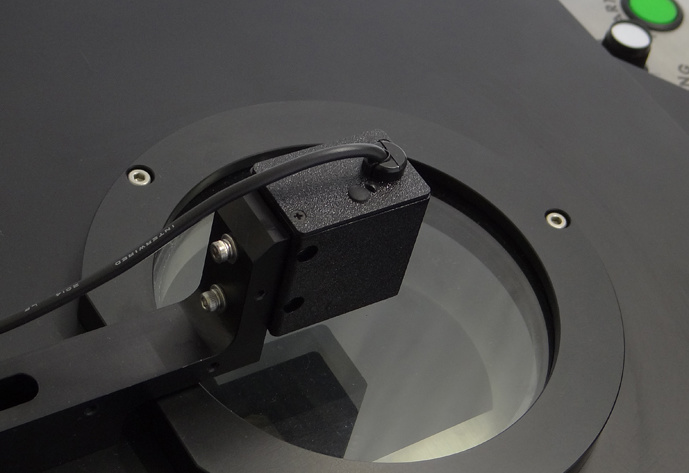

Optical sensor thermometer
